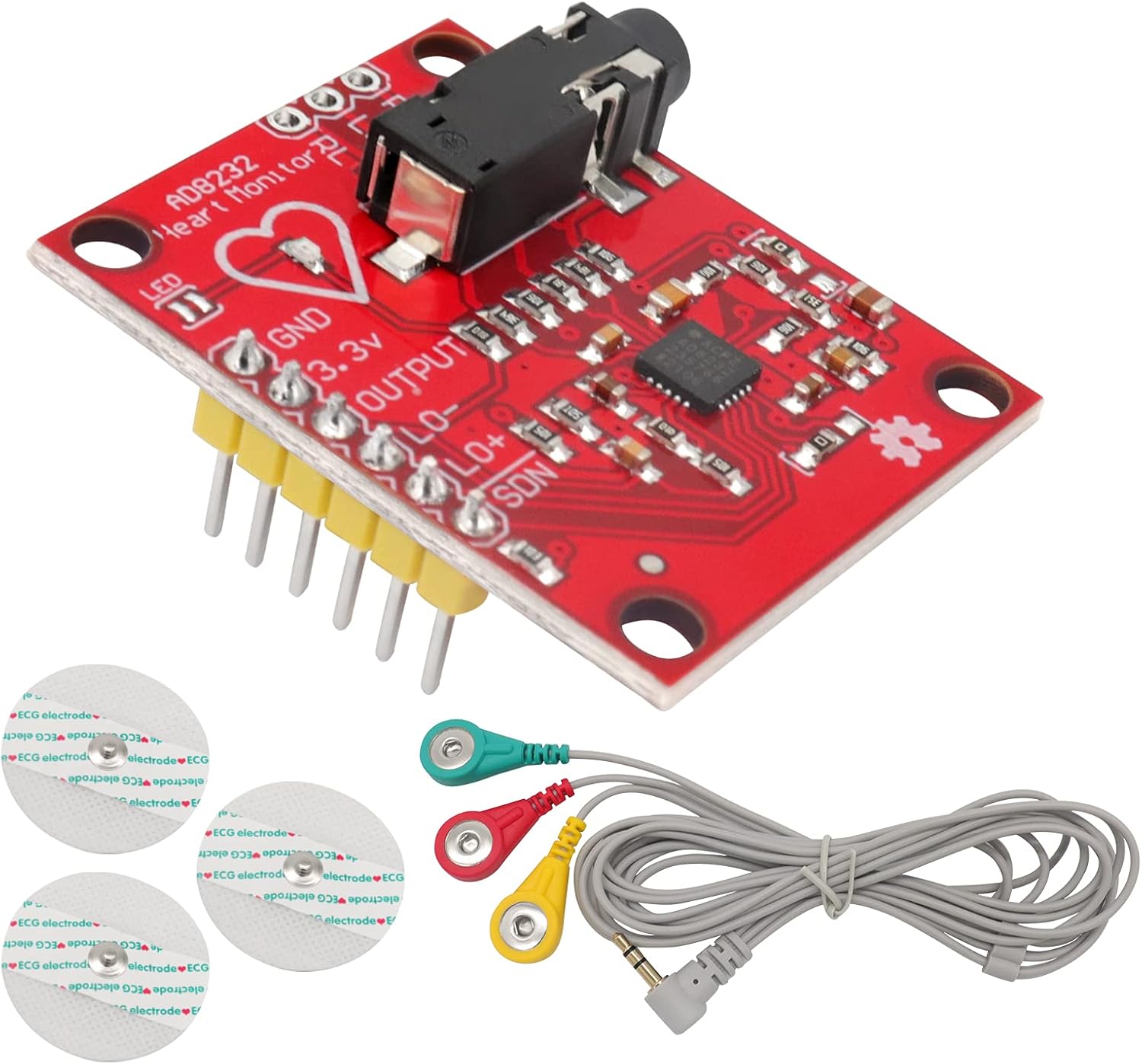

ECG Module AD8232 Heart ECG Monitoring Sensor Module Kit for Arduino The AD8232 ECG Module Kit for Arduino is an affordable heart rate monitoring solution that measures the electrical activity of the heart. It displays this activity as an Electrocardiogram (ECG) and outputs the data as an analog signal for further analysis. At the core of the AD8232 module is a precision op-amp, which helps isolate a clean signal from the heart’s PR and QT intervals, often prone to noise in ECG readings. This makes the module highly effective for heart rate monitoring and other bio-potential measurements. The AD8232 ECG Module is specifically designed to extract, amplify, and filter weak bio-signals, even in challenging environments with noise from movement or poor electrode placement. It provides a reliable solution for ECG and heart rate applications where clear, accurate signals are required. The module includes nine pins that can be connected to wires, pins, or other connectors. Essential pins like SDN, LO, LO-, OUTPUT, 3.3V, and GND allow seamless integration with Arduino or other microcontroller development boards. Additionally, you can connect custom sensors to the RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins to monitor heart activity from different body parts. An LED indicator on the board pulses in sync with the heartbeat, providing a visual signal of heart rhythm. For full functionality, you’ll need to connect Biomedical Sensor Pads and Sensor Cables, which are available in the Recommended Products section. This ECG Module Kit offers a practical and low-cost solution for heart monitoring in various DIY and biomedical applications. Pin Connections : Application Fitness and exercise heart rate monitoring Portable ECG Remote health care Gaming peripherals Biological signal acquisition Note: This product is NOT a medical device and is not intended to be used as such or as an accessory to such nor diagnose or treat any conditions. Features : Designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement. Single Lead Heart Rate Monitor is a cost-effective board used to measure the electrical activity of the heart. AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement applications. ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op-amp to help obtain a clear signal from the PR and QT Intervals easily. This electrical activity can be charged as an ECG or Electrocardiogram and output as an analog reading. Leads-Off Detection. Shutdown Pin. LED Indicator. Analog Output. 3.5 mm Jack for Biomedical Pad Connection. Specification: Operating Voltage (VDC) 3.3 Operating Temperature Range (°C): -40 to 90 Cable Length (cm) 50 Length (mm): 36 Width (mm) 30 Height (mm) 18 Weight (gm) 5 Shipping Weight 0.01 kg Shipping Dimensions 7 × 5 × 2 cm Package Includes : 1 x Ecg module AD8232 heart ECG monitoring sensor module. 1 x Sensor cable. 3 x Electrode Pads.
